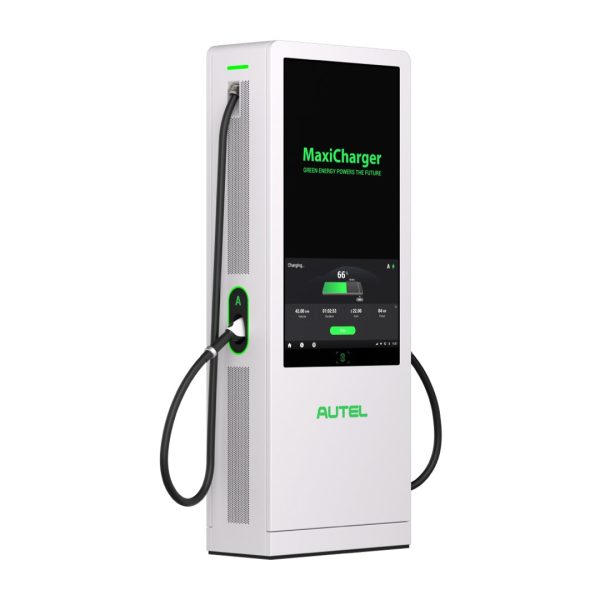

MaxiCharger DC HiPower
⁦MaxiCharger DC HiPower⁩ - الصورة ⁦2⁩
⁦MaxiCharger DC HiPower⁩ - الصورة ⁦3⁩

MaxiCharger DC HiPower

$0

فئات
فيسبوكواتس اب
Technical Specifications
DC output connection :
Charging mode Mode 4: CCS1
Output power 360kW/480kW
Output voltage 150-950 V
Output current CCS1 Liquid cooling plug: 650A, CCS1 Nature cooling plug: 200A, CHAdeMO: 200A
Number of outputs 4*CCS1, or 3*CCS1+1*CHAdeMO
Peak efficiency ≥96%
AC input connection :
Earthing system 3P, PE (No neutral)
Input voltage 3-phase 480V AC+10%~-15%
Input frequency 60 Hz
Power factor ≥0.99
Harmonic distortion（THDi） ≤5%
General characteristics :
Enclosure rating NEMA 3S
Operating altitude 2,000 m
Operating temperature range -35℃~+55℃
Storage temperature range -40℃~+70℃
Mounting Floor Standing
Dimensions（H×W×D） 2160×1410×898mm (Power Unit) 2160×850×400mm (User Unit)
User Interface :
Screen type 55 inch LCD Touch Screen
Cable length Liquid Cooling: 4m; Air Cooling: 4m Standard; 5m or 7m Optional
Status indication LED/LCD/APP
User interface Autel Charge APP; Autel Charge Cloud
Connectivity 4G, Wi-Fi, Ethernet
Communication protocols OCPP 1.6J (Can be upgraded to OCPP 2.0.1 later)
User authentication APP, RFID card, Credit card (Optional)
Software update
Software update OTA updates via web portal
Certification and standards
Safety and compliance UL 2202, UL 2231-1, UL 2231-2, CSA No.107.1-16, NEC Article 625, ISO 15118 Plug&Charge
EMC compliance FCC 15 Class A
Warranty 24 months, warranty extension possible
